Introduction

At the end of this article, you will be able to create rules in your firewall to allow network traffic through the required ports. Should you need any assistance, feel free to contact our support department.

SIP Registration

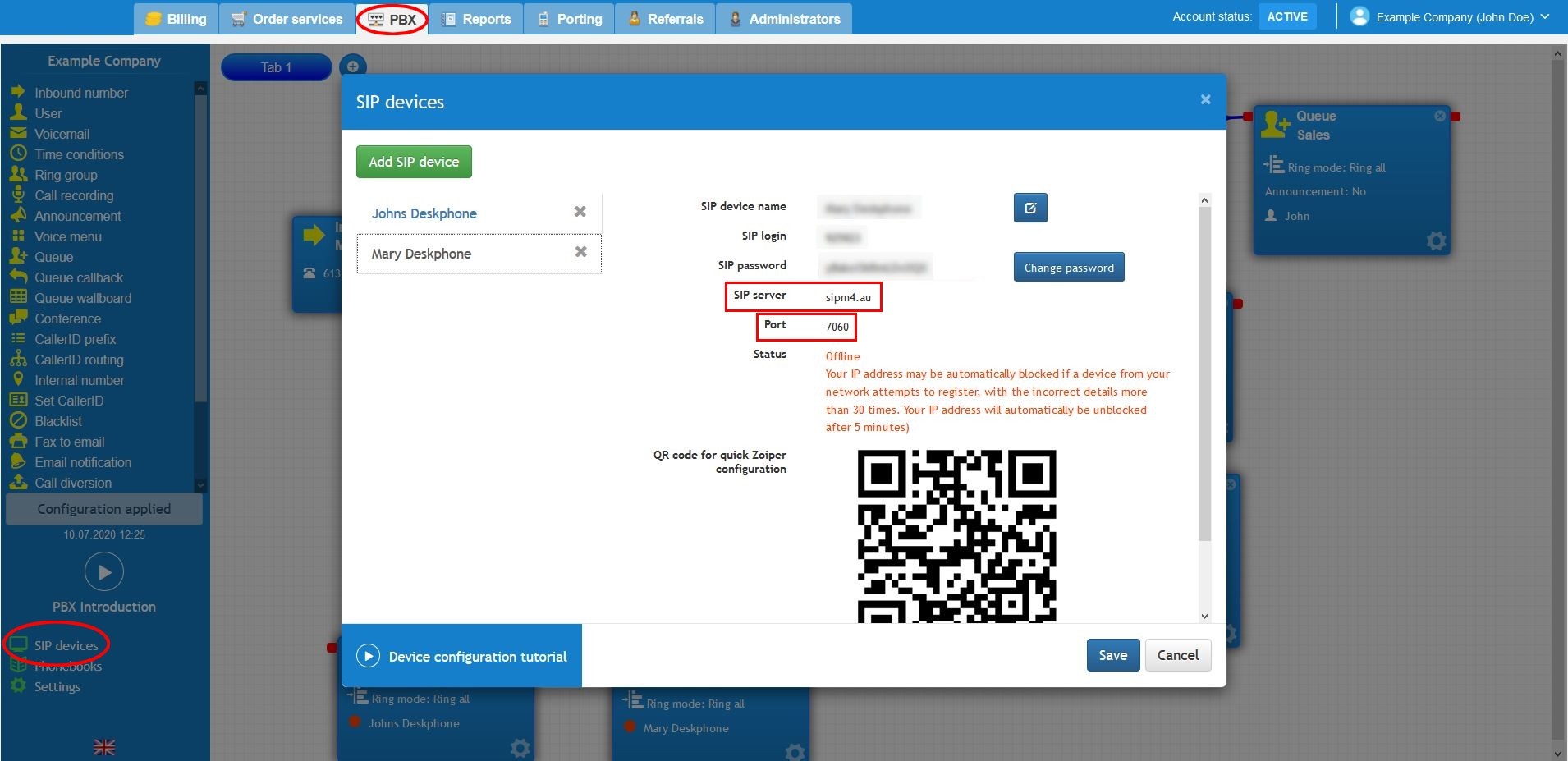

If you have strict firewall policies in place you will need to ensure the appropriate address and ports are added to be allowed as part of your firewall rules. Firstly, log in to yourcustomer portal, select the PBX tab and click on SIP devices at the bottom left-hand corner of the page. All your SIP devices will be displayed and you will be able to identify the SIP server and port which your endpoints are configured, as shown in the image below.

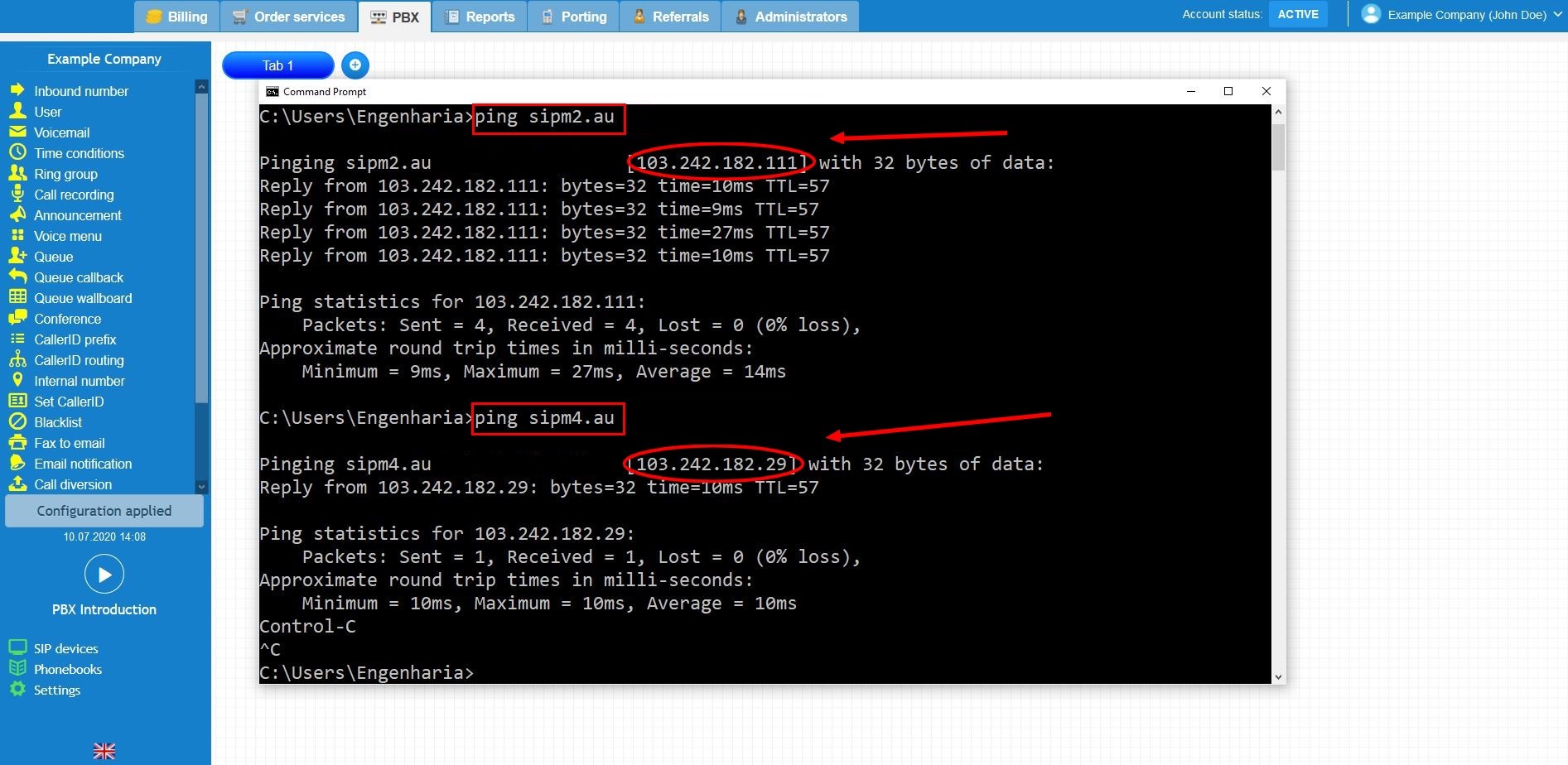

Depending on the firewall, it might be a stateful or stateless application. If the stateless application, allow both inbound and outbound traffic for the IP address and port on your firewall. To discover the IP address for the SIP server, you can simply run a ping command from the command prompt on your PC, as shown in the image below or use the following table.

SIP Server	IP Address	Port	Protocol
sipmreg.au.voipcloud.online sipm1.au.voipcloud.online sipm2.au.voipcloud.online sipm3.au.voipcloud.online sipm4.au.voipcloud.online sipm5.au.voipcloud.online sipm6.au.voipcloud.online sipm7.au.voipcloud.online sipm8.au.voipcloud.online sipm9.au.voipcloud.online sipm1.nz.voipcloud.online sipmreg.nz.voipcloud.online	103.242.182.14	7060	UDP/TCP
sipmreg.ie.voipcloud.online	103.93.80.14	7060	UDP/TCP
sipm1.uk.voipcloud.online sipmreg.uk.voipcloud.online	103.93.80.14	7060	UDP/TCP

Note that this information may change over time. Customers should monitor the content.

Alternatively, you can "whitelist" the entire 103.242.182.0/24 address block in your firewall which is assigned to VoIPline Telecom.

Please note if you are using SIP peering, the technical team will have advised you of the IP address and port to use at the time of the peering trunk when configured on our end.

Also, regardless of the address of the SIP-server, please ensure that you are using FQDN (for example sipmreg.au.voipcloud.online) instead of the direct IP address. SIP-server uses load balancing, so your devices don't always connect to the same public IP address.

RTP servers and port range

The RTP protocol is used to carry real-time traffic, such as audio and video during a call. For this reason, you will also need to allow both inbound and outbound traffic for the following IP addresses and the specified port ranges. If both inbound and outbound rules are not in place, one-way audio issues could occur.

IP Address of RTP proxy	Port	Protocol
103.242.182.9 103.242.182.113 103.242.182.114 103.242.182.119 103.242.182.120 103.93.80.10 103.93.80.11	10000-60000	UDP

Note that this information may change over time. Customers should monitor the content.

Alternatively, you can "whitelist" the entire 103.242.182.0/24 address block in your firewall which is assigned to VoIPline Telecom.
